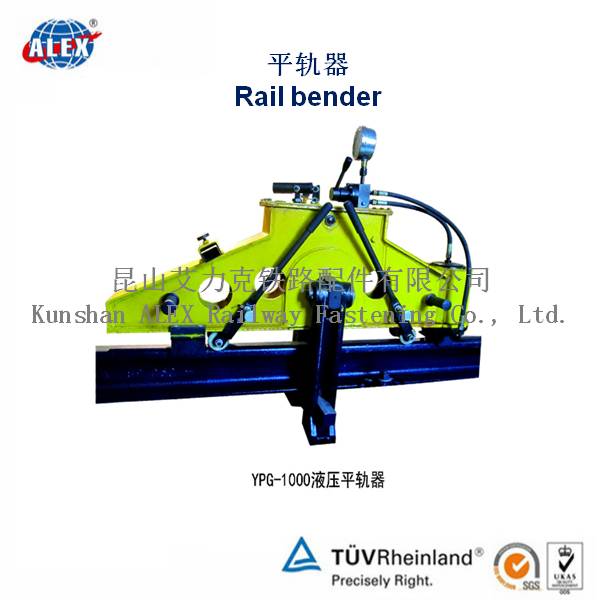

YPG - 1000 hydraulic Vertical Rail Bending Machine
Product Description
YPG - 1000 hydraulic Vertical Rail Bending Machine
YPG-1000 vertical rail bender is suitable for vertically straightening various rails joint to ensure the straightness of rails joint.It features simple in structure, easy in manipulation, safety in operation, reliable in quality.It’s suitable for railway maintenance, heavy haul and emergency repair operation.
We manufactures Rail E Clip and Clamp, High Tensile Bolt with Nut and Washer, Rail Base(Tie) Plate, Rail Fish Plate, Rail Shoulder, Rail Screw and Spike, Fish Bolt with Nut and Washer, Rail Dowel, Rubber and EVA Pad, Crane Rail and Light Rail, Wooden Sleeper, Auto Bolt and Other spare parts.
Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ E clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
We are trying to supply the best products at the best price!
YPG - 1000 hydraulic Vertical Rail Bending Machine
max.flattening force
1100kN
rated flattening force
1000kN
max.working pressure
52MPa
idle efficiency
0.56
adjusting support point (top block) changing range
±100mm
max.operating force
436kN
weight
190kg
oversize
1200*300*660mm
Packaging Details:
Plywood case (export standard) OR wooden box packing
Delivery Detail:
2 weeks after receive payments,stocks
