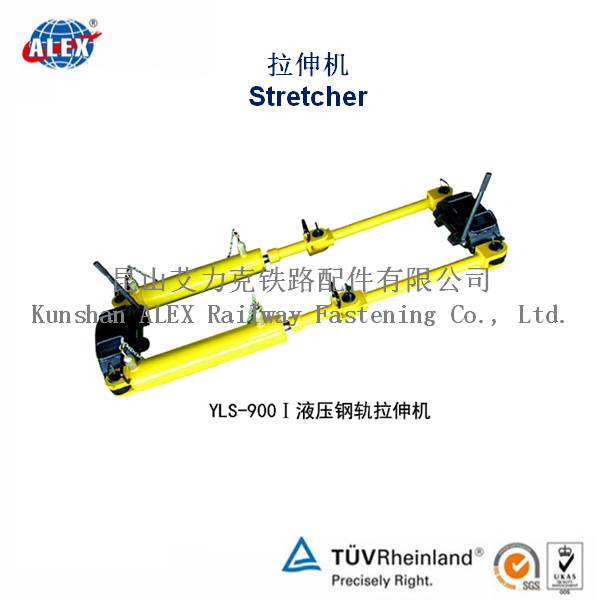

YLS-900 multifunction higher cost performance rail tensor
Product Description
YLS-900 multifunction higher cost performance rail tensor
It’s suitable for rail 50kg/m,60kg/m and 75kg/m type rail stress relief and seamless long rail relaying. While operating in the field at a certain temperature range being lower than the rail locking temperature, by employing this machine, the length of a rail with zero-stress can be forced to stretch to a length at locking temperature, then re-lock the rail.
By locking the rail waist, it will not hurt the rail head surface, one machine with a variety of configuration meets the field work in different ways, it possesses features of unique design, light weight, simple & convenient manipulation and powerful rail pulling force.
310kg
HONGDA GX160 petrol engine, power 4kw,rate of flow≥3L/min, weight 75kg
We manufactures Rail E Clip and Clamp, High Tensile Bolt with Nut and Washer, Rail Base(Tie) Plate, Rail Fish Plate, Rail Shoulder, Rail Screw and Spike, Fish Bolt with Nut and Washer, Rail Dowel, Rubber and EVA Pad, Crane Rail and Light Rail, Wooden Sleeper, Auto Bolt and Other spare parts.
Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ E clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
We are trying to supply the best products at the best price!
YLS-900 multifunction higher cost performance rail tensor
Max. rated working pressure
57Mpa
Max. rail pulling force
2*450kN
Max. stroke of working cylinder
760mm
Two pull rod center distance
360mm
Lock mode
Iron wedges clamp rail web
Unit weight
Petrol pump station(optional)
Electric pump station(optional)
Power 3kw, voltage 380v, rate of flow≥3L/min, weight 85kg
Packaging Details:
Plywood case (export standard) OR wooden box packing
Delivery Detail:
2 weeks after receive payments,stocks
We can provide products according to customers drawings and samples.Our main products are as following:
