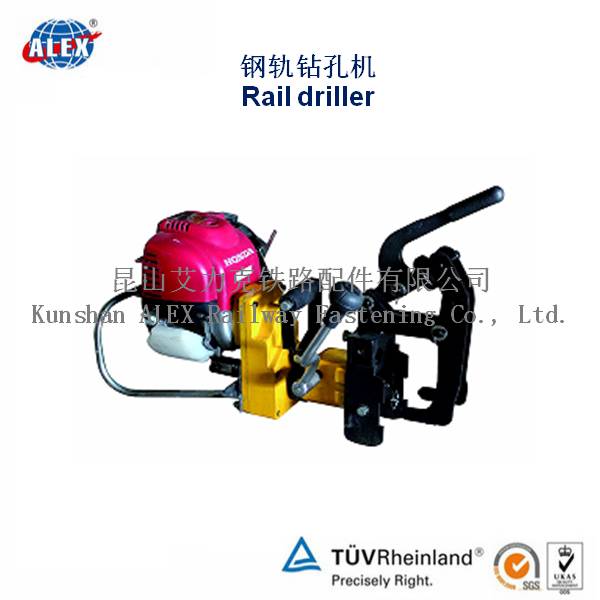

light portable rail drilling machine
light portable rail drilling machine
Gas engine drilling machine
takes1-2 seconds to clamp and loose ,the locate blocks can be changed any time
takes 20 seconds to drill Φ 31 hole
for the rail system inspection application
Product
Description
Model
NZG-31 Gas engine drilling machine
Dimension
Material
stainless steel
Color
red+yellow+black
Application
for the rail system device application
Power Source
GX35 engine
Power
1.2 KW
Drill Bits
N Tail Handle Drill Bit
Max. Drilling Diameter
φ36 mm
Spindle Speed
≥270 r/min
Weight
17 kg
We manufactures Rail E Clip and Clamp, High Tensile Bolt with Nut and Washer, Rail Base(Tie) Plate, Rail Fish Plate, Rail Shoulder, Rail Screw and Spike, Fish Bolt with Nut and Washer, Rail Dowel, Rubber and EVA Pad, Crane Rail and Light Rail, Wooden Sleeper, Auto Bolt and Other spare parts.
Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ E clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
We are trying to supply the best products at the best price!
light portable rail drilling machine
Packaging Details:
Plywood case (export standard) OR wooden box packing
Delivery Detail:
2 weeks after receive payments,stocks
We can provide products according to customers drawings and samples.Our main products are as following:
