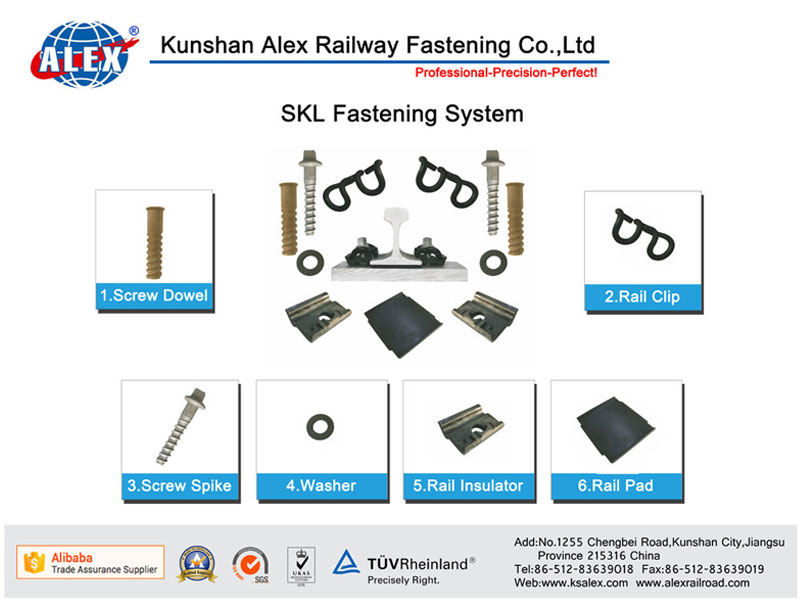

SKL Type Railway Fastening System

Materials: 60Si2Cr, 60Si2Mn, 55SiMn, 38Si7 Product properties: Hardness HRC 42-47,Fatigue life 3-5 million cycles Surface: Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating Standard: GB/T 1222, DIN 17221 MOQ: 5000 Piece/Pieces Supply ab...
Materials: 60Si2Cr, 60Si2Mn, 55SiMn, 38Si7

Product properties: Hardness HRC 42-47Fatigue life 3-5 million cycles

Surface: Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating

Standard: GB/T 1222, DIN 17221

MOQ: 5000 Piece/Pieces

Supply ability: 1000 Ton/Tons per Month

Delivery: within 20 working days





E Type Railway Fastening System

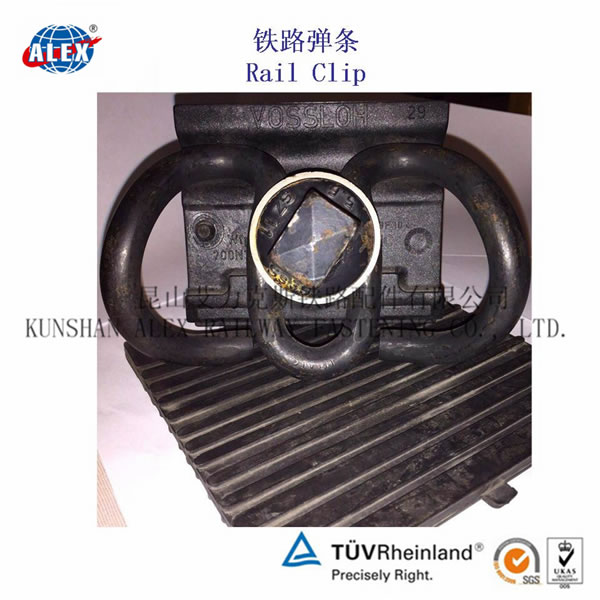

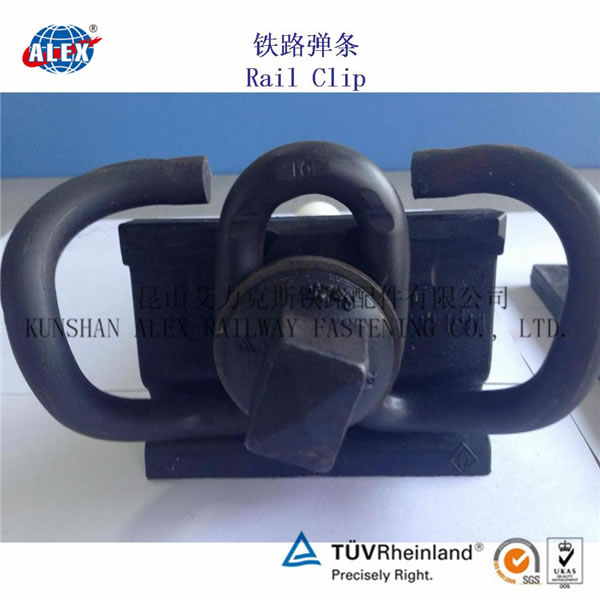

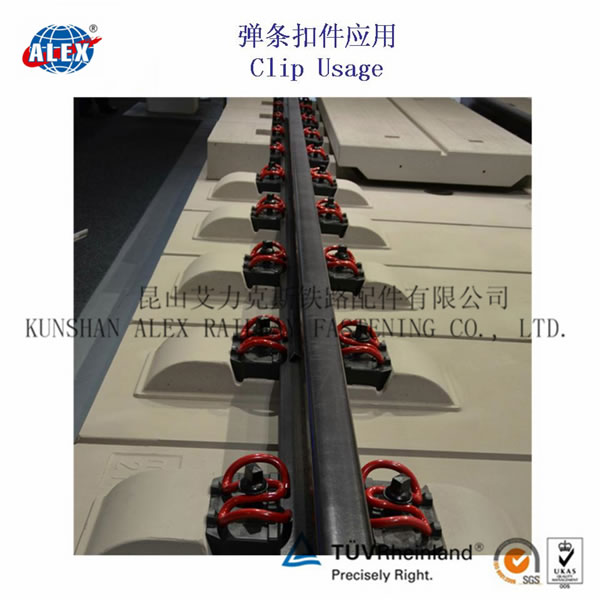

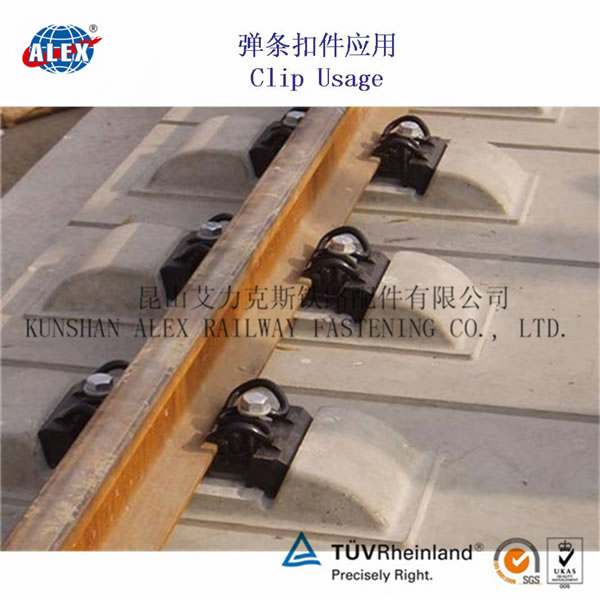

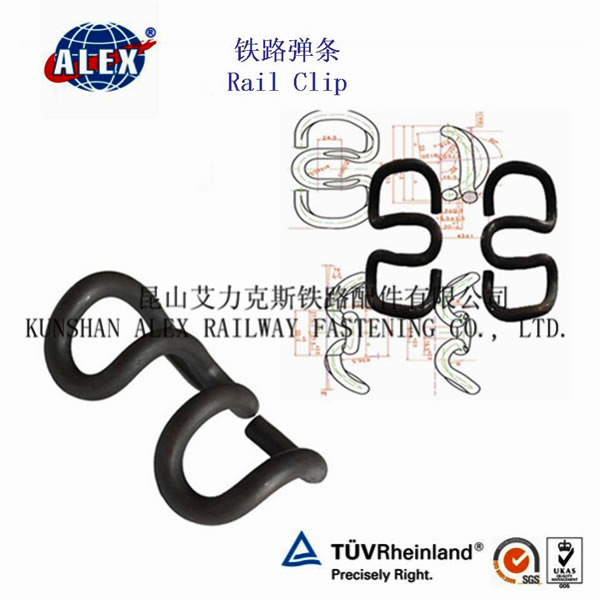

Elastic rail clip is for rail fastening system. We produce and supply various elastic rail clip, spring blade and SKL tension clamp.

Technical Parameter of The elastic rail clip

Diameter (mm)

Weight (Kg)

Toe Load (Kgf)

12

0.18

200~400

14

0.30

400~600

16

0.44

500~700

18

0.59

800~1000

20

0.76

1100~1400

Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.

We can provide products according to customers drawings and samples.Our main products are as following:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.

2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip

3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts

4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad

5. Fish plate / Joint bar / Rail joint/ Splice Bar

6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt

7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip

8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers

9. Plastic dowel / Guide plate/ Nylon insert

We are trying to supply the best products at the best price!





Thank you for visiting our website. Welcom to choose the elastic rail Clip from Kunshan ALEX Railway Fastening Co., Ltd.
