Railway elastic Clip for railroad construction

Materials: 60Si2Cr, 55SiMn, 38Si7 Product properties: Hardness HRC 42-47,Fatigue life 3-5 million cycles Surface: Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating Standard: GB/T 1222, DIN 17221 MOQ: 5000 Piece/Pieces Supply ability: 10...

Materials: 60Si2Cr, 55SiMn, 38Si7

Product properties: Hardness HRC 42-47Fatigue life 3-5 million cycles

Surface: Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating

Standard: GB/T 1222, DIN 17221

MOQ: 5000 Piece/Pieces

Supply ability: 1000 Ton/Tons per Month

Delivery: within 20 working days

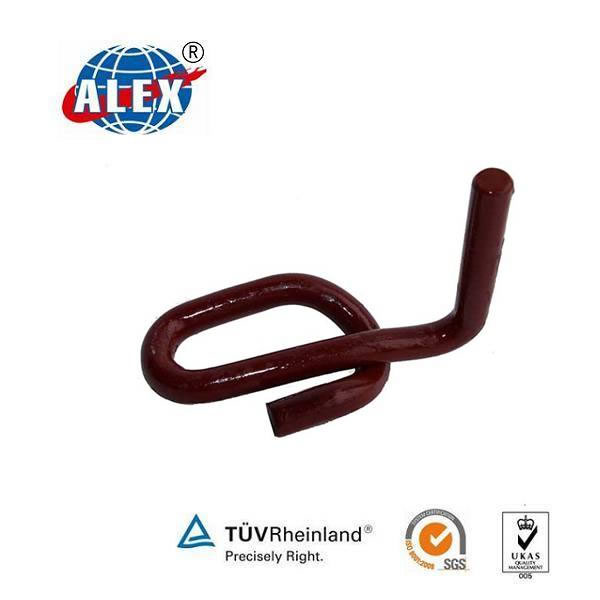

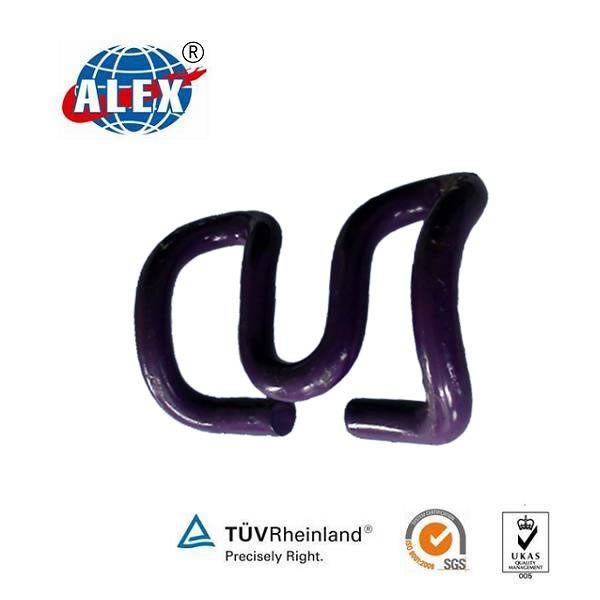

Railway elastic Clip for railroad construction

Name

Railroad clip

Type

E clip (e1809, e2006,e2007,e2009,etc)

Skl clip (skl1,skl3,skl12,skl14)

 Or the type by customers' drawings

Material

60Si2MnA

60Si2CrA

55Si2Mn

38Si7

Chemical composition(%)

C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03

C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03

C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35  P:≤0.03, S:≤0.03

C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03

Hardness

For e clip: 44-48HRC

For skl clip: 42-47HRC

Fatigue life

for Dia.18 is 3 millions cycles without breaking

for Dia.20 is 5 millions cycles without breaking

Surface

plain (oiled), Oxide black, color painting, HDG, Zinc Plating...

Standard refers

DIN17221, BS970, GB/T1222

We manufactures SKL clip,  Rail E Clip and Clamp,  High Tensile Bolt with Nut and Washer,  Rail Base(Tie) Plate,  Rail Fish Plate,  Rail Shoulder,  Rail Screw and Spike,  Fish Bolt with Nut and Washer,  Rail Dowel,  Rubber and EVA Pad,  Crane Rail and Light Rail,  Wooden Sleeper,  Auto Bolt and Other spare parts.


Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.

We can provide products according to customers drawings and samples.Our main products are as following:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.

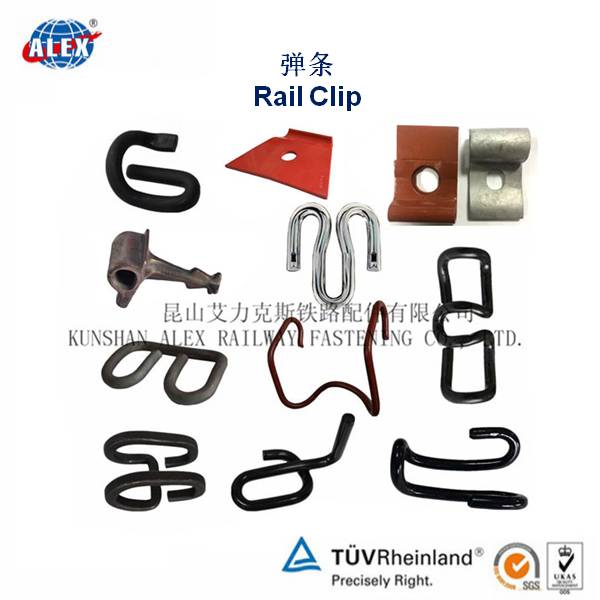

2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip

3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts

4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad

5. Fish plate / Joint bar / Rail joint/ Splice Bar

6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt

7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip

8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers

9. Plastic dowel / Guide plate/ Nylon insert

We are trying to supply the best products at the best price!
