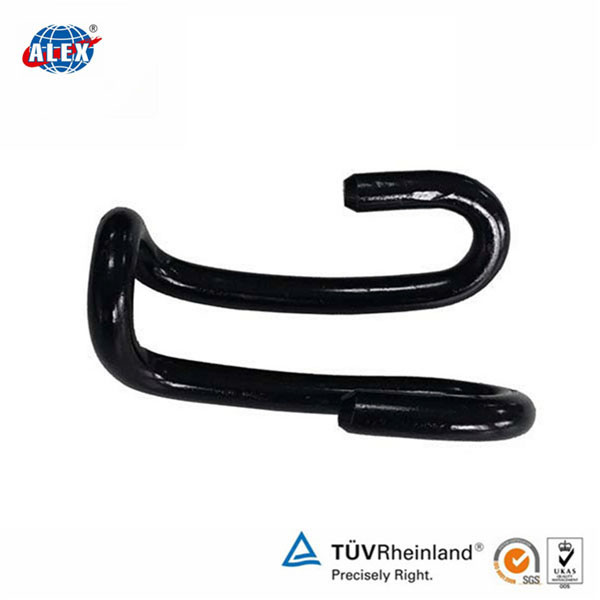

BZA Rail Clip
Materials: 60Si2MnA, 60Si2CrA, 38Si7, 55SiMn
Thickness: 12mm, 14mm, 16mm, 18mm, 20mm
Surface: Red Paint, Plain Oiled, Oxygen Black, Zinc Plated
Material Refer to: DIN 17221,BS 970, GB/T 4357, GB/T 4358
Packing: 25KG per woven bag in free fumigation wooden box
MOQ: 3000 Piece/Pieces
Supply ability: 500 Ton/Tons per Month
Delivery: within 20 working days
|
Name |
BZA Rail Clip |
|||
|
Type |
E clip (e1809, e2006,e2007,e2009,etc) |
|||
|
Skl clip (skl1,skl3,skl12,skl14) |
||||
|
Or the type by customers’ drawings |
||||
|
Material |
60Si2MnA |
60Si2CrA |
55Si2Mn |
38Si7 |
|
Chemical composition(%) |
C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 |
C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 |
C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 |
C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
|
Hardness |
For e clip: 44-48HRC For skl clip: 42-47HRC |
|||
|
Fatigue life |
for Dia.18 is 3 millions cycles without breaking for Dia.20 is 5 millions cycles without breaking |
|||
|
Surface |
plain (oiled), Oxide black, color painting, HDG, Zinc Plating... |
|||
|
Standard refers |
DIN17221, BS970, GB/T1222 |
|||
We manufactures BZA Rail Clip, Rail E Clip and Clamp, High Tensile Bolt with Nut and Washer, Rail Base(Tie) Plate, Rail Fish Plate, Rail Shoulder, Rail Screw and Spike, Fish Bolt with Nut and Washer, Rail Dowel, Rubber and EVA Pad, Crane Rail and Light Rail, Wooden Sleeper, Auto Bolt and Other spare parts.
Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.
We can provide products according to customers drawings and samples.Our main products are as following:
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
We are trying to supply the best products at the best price!
