Railway Fist Clip Fastening System
Materials: 60Si2Cr, 60Si2Mn,55SiMn, 38Si7
Product properties: Hardness HRC 42-47，Fatigue life 3-5 million cycles
Surface: Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating
Standard: GB/T 1222, DIN 17221
MOQ: 5000 Piece/Pieces
Supply ability: 1000 Ton/Tons per Month
Delivery: within 20 working days

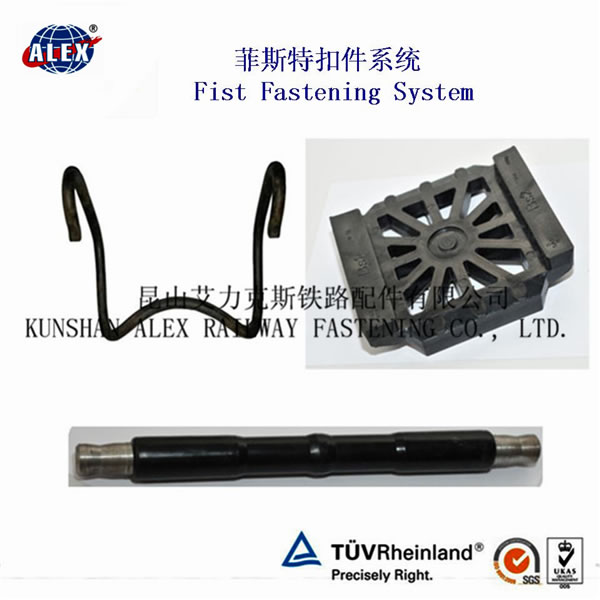

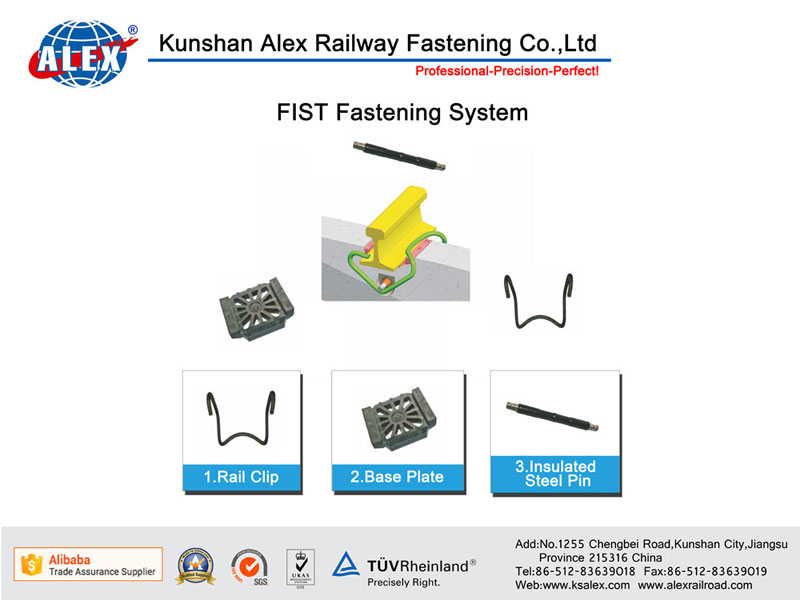

Railway fist clip Fastening System

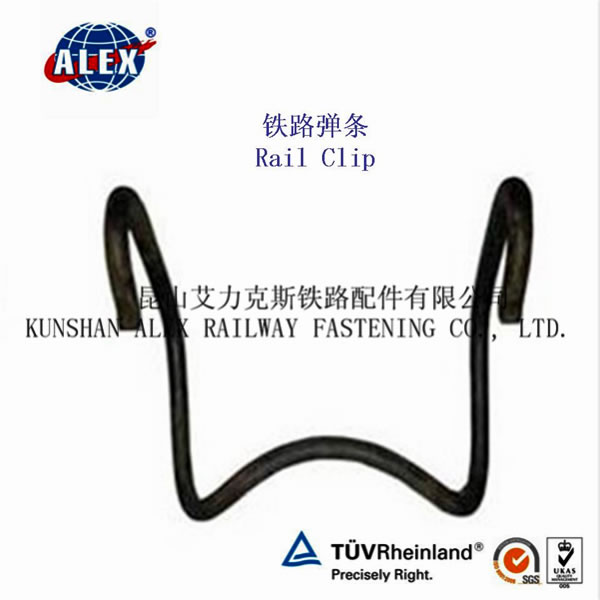

Elastic railway fist clip fastening system is for rail fastening system. We produce and supply various fist rail clip, spring blade and SKL tension clamp.
Technical Parameter of The fist rail clip
|
Diameter (mm) |
Weight (Kg) |
Toe Load (Kgf) |
|
12 |
0.18 |
200~400 |
|
14 |
0.30 |
400~600 |
|
16 |
0.44 |
500~700 |
|
18 |
0.59 |
800~1000 |
|
20 |
0.76 |
1100~1400 |
Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.
We can provide products according to customers drawings and samples.Our main products are as following:
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
We are trying to supply the best products at the best price!
Thank you for visiting our website. Welcom to choose the railway fist clip fastening system from Kunshan ALEX Railway Fastening Co., Ltd.

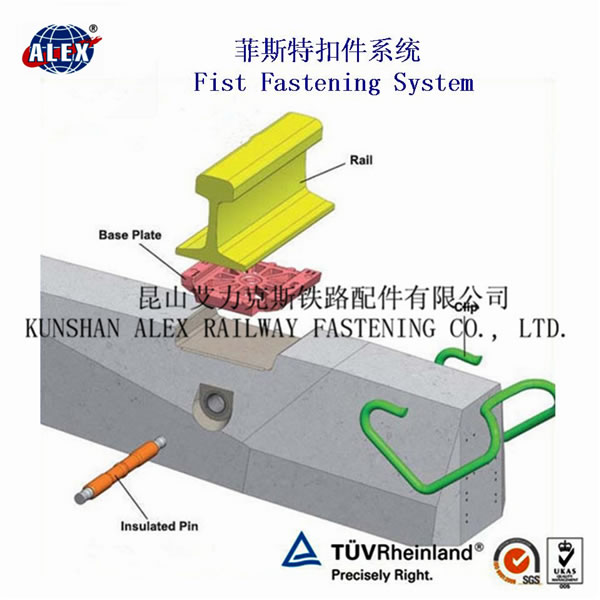

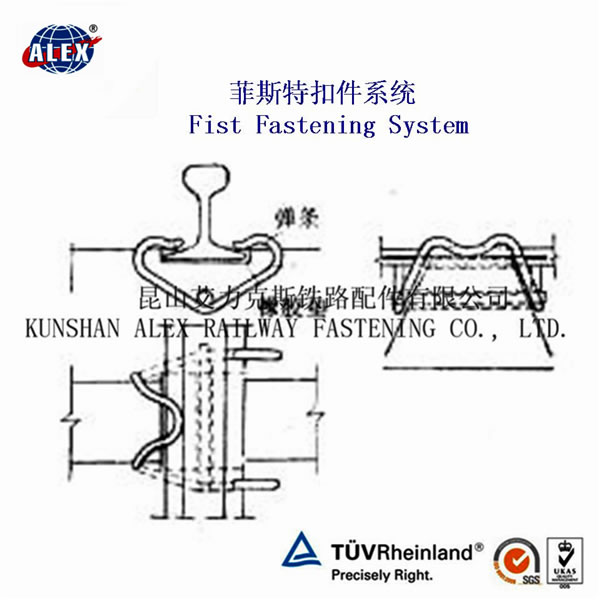

Railway fist clip fastening system
We can produce elastic railway fist rail clip for different toe load and axle load requirements, for wooden, steel or concrete sleepers. We manufacture different types of elastic railway fist rail clips and provide any type of toe load and axle load to fix the rails on wooden, steel or concrete sleepers. Welcome to choose elastic railway fist rail clip from Kunshan Alex Railway Fastening Co., Ltd.
