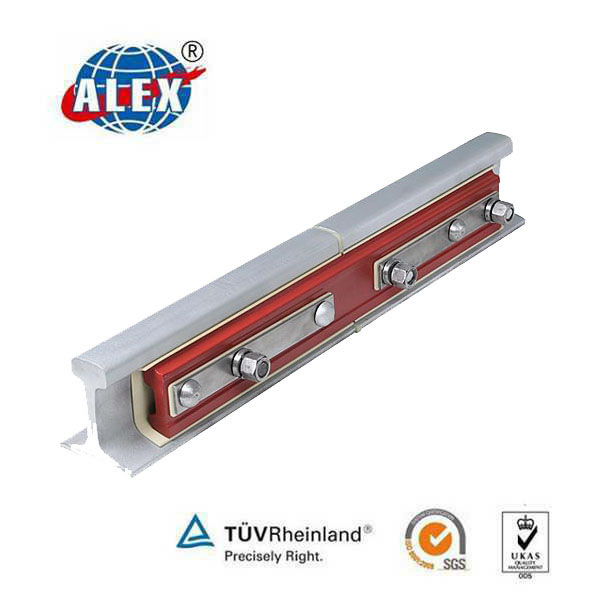

Railroad Fish Plate

Railroad Fish Plate Materials: Steel 45#,50#,55#,Q235 Model: Customized according to the drawing Surface: Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating Tensile Strength: 70KG/MM2 Extensibility: 12% Packing Details: 20-40 pieces per bundle wit...

Railroad Fish Plate

Materials: Steel 45#,50#,55#,Q235

Model: Customized according to the drawing

Surface: Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating

Tensile Strength: 70KG/MM2

Extensibility: 12%

Packing Details: 20-40 pieces per bundle with fumigation free wooden box

MOQ: 3000 Piece/Pieces

Supply ability: 500 Ton/Tons per Month

Delivery: within 20 working days

Railroad Fish Plate

Name

Railroad Fish Plate

Type

Length /Diameter

Weight(Kg)

Material

115RE

4 hole- 24″

17.04

45#



Chemical composition(%):

C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035







50#



Chemical composition(%):

C:0.62-0.70, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035

115RE

6 hole -36″

25.56

132-136RE

4hole-24″

17.75

132-136RE

6hole-36″

26.63

UIC60

4 hole - 630/Dia.26

18.07

UIC60

4 hole-600/Dia.28

17.47

UIC60

4 hole  - 630/Dia.25

18.1

UIC54

4hole

14.34

UIC54

6hole- 800

19.94

BS80A

4hole

6.5

BS90A

685.8 / Dia.26

13.23

BS90A

792.9/Dia.26 .2

15.34

90/91LB

4 hole

18.08

90/91LB

6hole

19.9

50Kg

4hole

14.3

50Kg

6hole

19.5

BS75R

4hole

6.56

BS60A

4hole

5.61

S49

4 hole

9.71

railway fastening system (1)







We manufactures Railroad Fish Plate, Clip and Clamp,  High Tensile Bolt with Nut and Washer,  Rail Base(Tie) Plate,  Rail Fish Plate,  Rail Shoulder,  Rail Screw and Spike,  Fish Bolt with Nut and Washer,  Rail Dowel,  Rubber and EVA Pad,  Crane Rail and Light Rail,  Wooden Sleeper,  Auto Bolt and Other spare parts.



Company Information

ksalex company sksalex company (1)

Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.

We can provide products according to customers drawings and samples.Our main products are as following:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.

2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip

3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts

4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad

5. Fish plate / Joint bar / Rail joint/ Splice Bar

6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt

7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip

8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers

9. Plastic dowel / Guide plate/ Nylon insert

We are trying to supply the best products at the best price!
