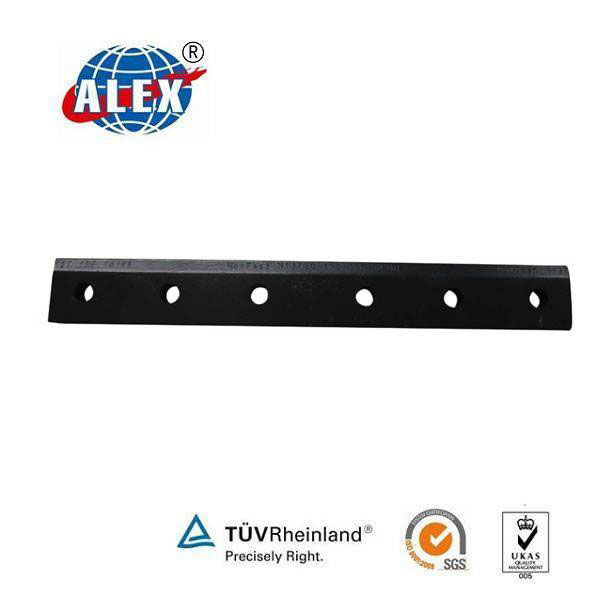

Railway Splice Bar Set
Railway Splice Bar
Materials: Steel 45#,50#,55#,Q235
Model: Customized according to the drawing
Surface: Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating
Tensile Strength: 70KG/MM2
Extensibility: 12%
Packing Details: 20-40 pieces per bundle with fumigation free wooden box
MOQ: 3000 Piece/Pieces
Supply ability: 500 Ton/Tons per Month
Delivery: within 20 working days
Railway Splice Bar
|
Name |
Splice Bar |
|||
|
Type |
Length /Diameter |
Weight(Kg) |
Material |
|
|
115RE |
4 hole- 24″ |
17.04 |
45#
Chemical composition(%): C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035
|
50#
Chemical composition(%): C:0.62-0.70, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035 |
|
115RE |
6 hole -36″ |
25.56 |
||
|
132-136RE |
4hole-24″ |
17.75 |
||
|
132-136RE |
6hole-36″ |
26.63 |
||
|
UIC60 |
4 hole - 630/Dia.26 |
18.07 |
||
|
UIC60 |
4 hole-600/Dia.28 |
17.47 |
||
|
UIC60 |
4 hole - 630/Dia.25 |
18.1 |
||
|
UIC54 |
4hole |
14.34 |
||
|
UIC54 |
6hole- 800 |
19.94 |
||
|
BS80A |
4hole |
6.5 |
||
|
BS90A |
685.8 / Dia.26 |
13.23 |
||
|
BS90A |
792.9/Dia.26 .2 |
15.34 |
||
|
90/91LB |
4 hole |
18.08 |
||
|
90/91LB |
6hole |
19.9 |
||
|
50Kg |
4hole |
14.3 |
||
|
50Kg |
6hole |
19.5 |
||
|
BS75R |
4hole |
6.56 |
||
|
BS60A |
4hole |
5.61 |
||
|
S49 |
4 hole |
9.71 |
||
We manufactures Railway Splice Bar, Clip and Clamp, High Tensile Bolt with Nut and Washer, Rail Base(Tie) Plate, Rail Fish Plate, Rail Shoulder, Rail Screw and Spike, Fish Bolt with Nut and Washer, Rail Dowel, Rubber and EVA Pad, Crane Rail and Light Rail, Wooden Sleeper, Auto Bolt and Other spare parts.
Kunshan Alex Railway Fastening Co., Ltd manufactures railway
fasteners and standard components. As a leading railway fasteners
manufacturers in China,with production license of Chinese railway
Ministry, advanced technology, high precision inspection instruments and
service, our products have been widely exported the USA, Germany,
Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK,
India, and South Africa etc.
We can provide products according to customers drawings and samples.Our main products are as following:
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
We are trying to supply the best products at the best price!
