PA66 Rail Dowel

Materials: HDPE, PA6, PA66, PA66+GF30% Dimension: Different Size Available, Customized according to the drawing Standard: DIN, NF, AREAMA, etc MOQ: 5000 Piece/Pieces Packing: Less 25KG per woven bag with pallet Supply ability: 3000 Ton/Tons per Month Delivery: wit...

Introduction: Feedback: Related Products:

Materials: HDPE, PA6, PA66, PA66+GF30%

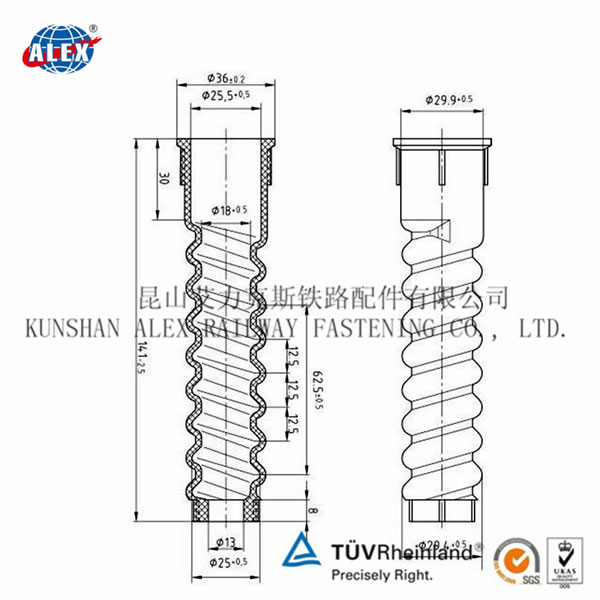

Dimension: Different Size Available, Customized according to the drawing

Standard: DIN, NF, AREAMA, etc

MOQ: 5000 Piece/Pieces

Packing: Less 25KG per woven bag with pallet

Supply ability: 3000 Ton/Tons per Month

Delivery: within 15 working days

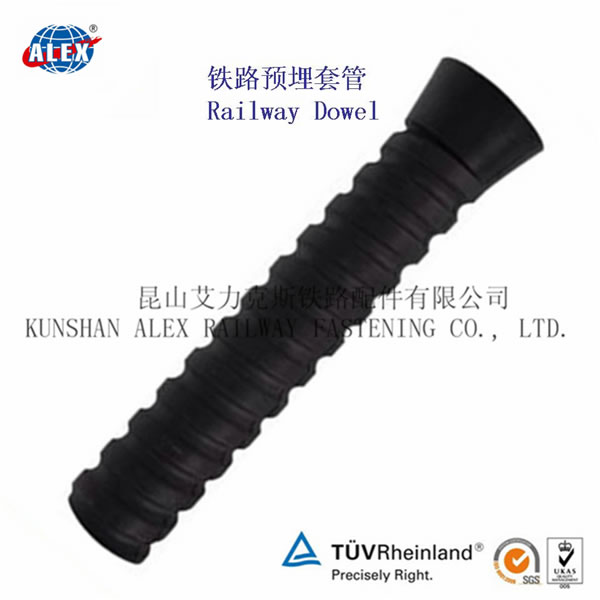

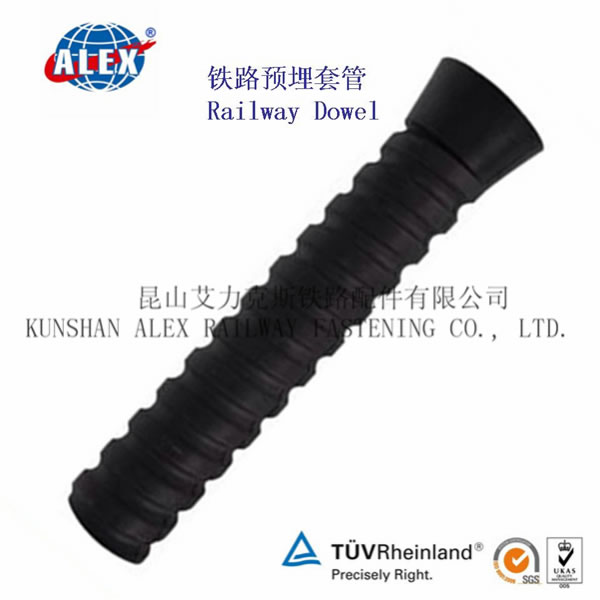

Railway plastic dowel

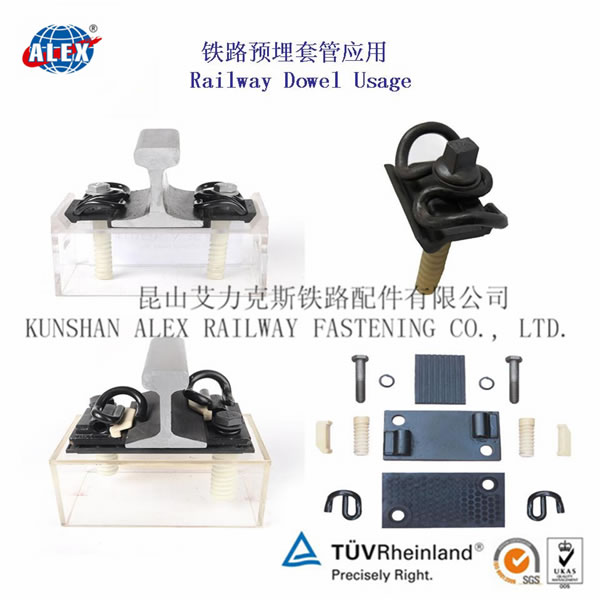

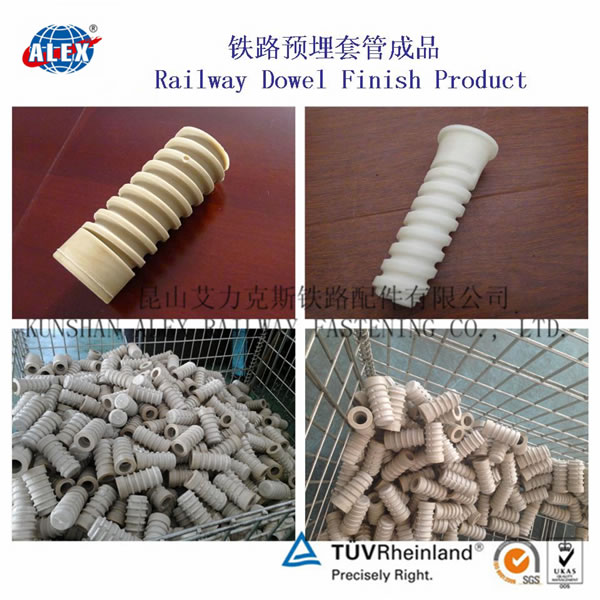

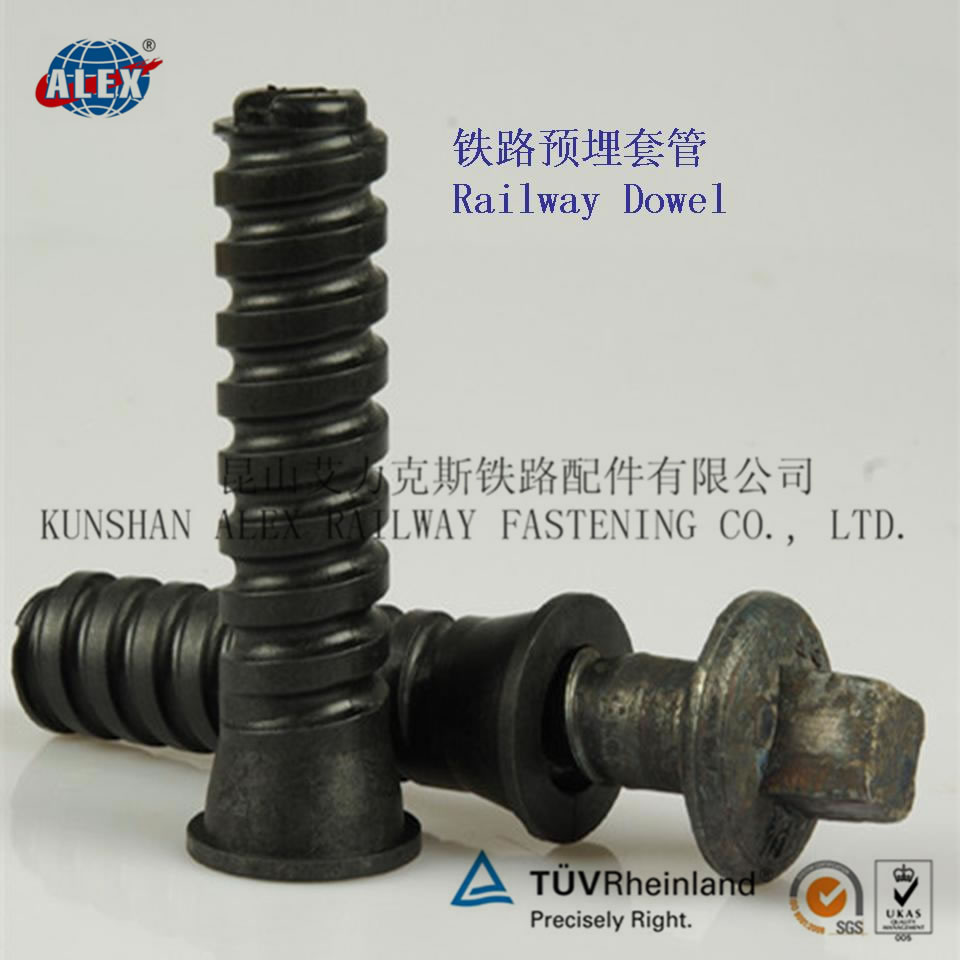

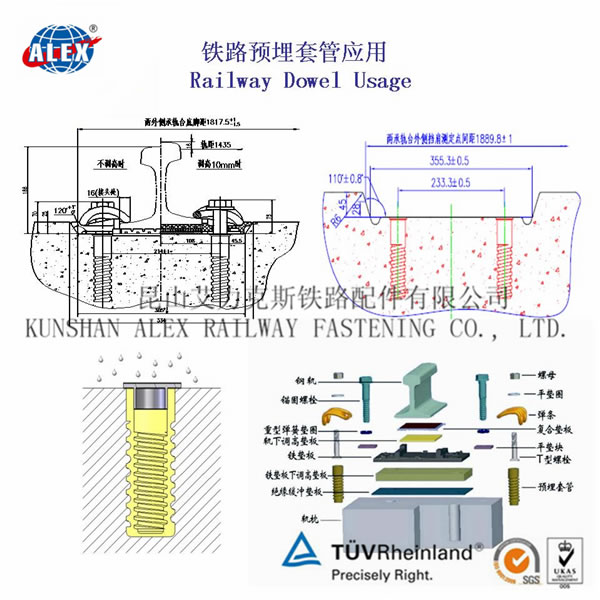

Railroad Plastic Dowel is a counter-party of Screw Spike, which is pre-inserted into the concrete sleeper. When we use the rail fastening system, the plastic railroad dowel performed as the fastening base. Our plastic dowel is made using either HDPE or PA66 + GF30% and the product color is available in white, black and dark brown.

Technical Parameter HDPE Rail Plastic Dowel

No.	Technical Parameter	Unit	Technical Requirement	Value
1	Density	g/cm3	0.95-0.98	0.95
2	Tensile Strength	Mpa	≥19	19
3	Elongation	%	>80	150
4	Melting Point	℃	170-190	190
5	Insulation Resistance	Ω	≥1×1010	3.5 ×1010
6	Hardness	A	≥98	98(A)

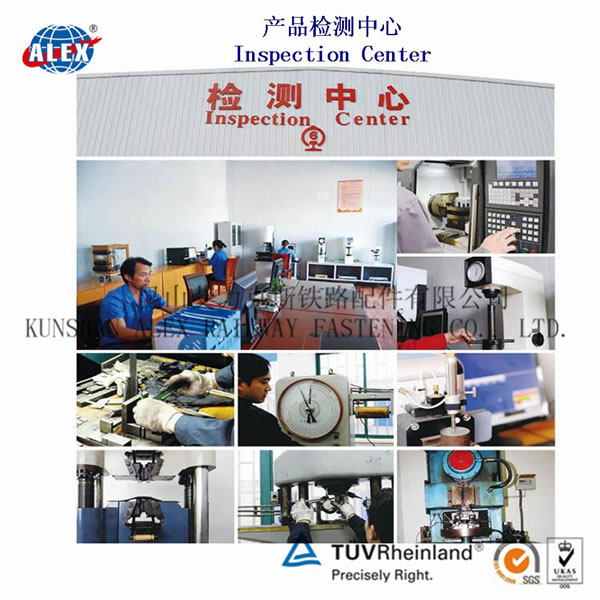

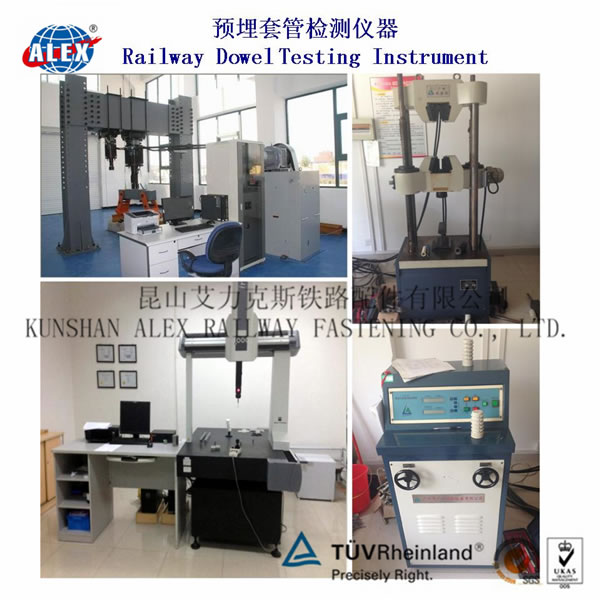

Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.
We can provide products according to customers drawings and samples.Our main products are as following:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.

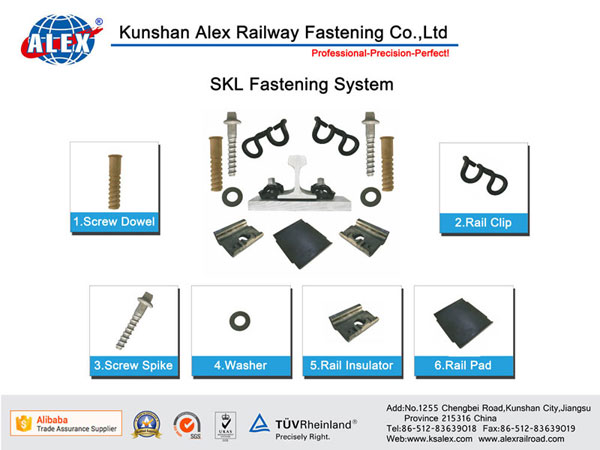

2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip

3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts

4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad

5. Fish plate / Joint bar / Rail joint/ Splice Bar

6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt

7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip

8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers

9. Plastic dowel / Guide plate/ Nylon insert

We are trying to supply the best products at the best price!
