Rail Clamp Fastening System

Materials: 60Si2Cr, 60Si2Mn, Q235 Sample: Free Surface: plain (oiled), black oxide, color painting, zinc plating Standard: GB/T 1222, DIN 17221, etc MOQ: 1000 Piece/Pieces Supply ability: 1000 Ton/Tons per Month Delivery: within 20 working days Rail clamp Our ...

Materials: 60Si2Cr, 60Si2Mn, Q235

Sample: Free

Surface: plain (oiled), black oxide, color painting, zinc plating

Standard: GB/T 1222, DIN 17221, etc

MOQ: 1000 Piece/Pieces

Supply ability: 1000 Ton/Tons per Month

Delivery: within 20 working days





Rail clamp

Our rail clamp is made from low carbon steel or alloy steel by hot forging, rolling and casting, based on the requirements of our customers. We produce rail clamp in accordance with DIN, GB/TB, AREA standards and customer drawings. We also produce rail clips in accordance with AREA, ranging from 52 lbs rail, 62 lbs rail, 114 lbs rail, 106 lbs rails, 120 lbs rails, 128 lbs rails, 171 lbs rails and 75 lbs rails. The rail clamp we produced, i.e., S18, S20, S30, S33, KP03, KP06 and KP03.

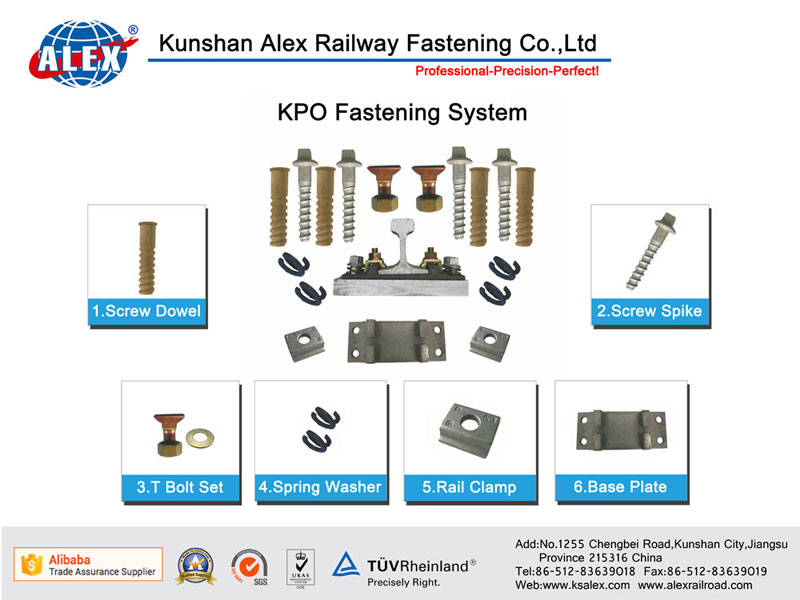

KPO Clamp Rail Fastening System Technical Parameters

Part name

Type

Material

Finish

Remark

KPO clip

KPO3, KPO6, KPO9

Q235

Plain oiled

Standard: DIN5906

HS bolt

HS26, HS32

Grade4.6: Q235
Grade5.6: 35#
Grade8.8: 45#

Plain oiled, black oxide, galvanized, hot dip galvanized

Diameter: 22mm or 24mm.
Length: 55mm, 65mm, 75mm, 90mm
Standard: UIC864-2

Hex nut

As ordered

Grade 5: 35#
Grade 8: 45#

Plain oiled, black oxide, galvanized, hot dip galvanized

Standard: DIN985

Double coil spring washer

As ordered

65Mn

Plain oiled, black oxide, galvanized, hot dip galvanized

Standard: UIC864-3

screw spike

M24×150mm
M24 ×160mm
M24 ×180mm
or other length as ordered

Grade 4.6: Q235
Grade 5.6: 35#
Grade 8.8: 45#

Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized.

Standard: ISO898-1, UIC864-1 and NF F500-50

Base plate

UIC54,UIC60, 50kg rail, 60kg rail,S49 in ordered size

Casting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steel

Plain oiled

Standard: UIC864-6


Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.

We can provide products according to customers drawings and samples.Our main products are as following:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.

2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip

3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts

4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad

5. Fish plate / Joint bar / Rail joint/ Splice Bar

6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt

7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip

8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers

9. Plastic dowel / Guide plate/ Nylon insert

We are trying to supply the best products at the best price!







Thank you for visiting our website. Welcom to choose the elastic rail Clamp from Kunshan ALEX Railway Fastening Co., Ltd.
