railroad shoulder insert

Materials: QT400-15,QT450-10,QT500-7,QT600-3,QT700-2,ZG25,ZG35,ZG45 Model: Customized according to the drawing Surface: Plain Oiled, Oxygen Black Produce Type: Sand casting, Hot Forging Packing Details: fumigation free wooden box MOQ: 3000 Piece/Pieces Supply a...
Materials: QT400-15,QT450-10,QT500-7,QT600-3,QT700-2,ZG25,ZG35,ZG45

Model: Customized according to the drawing

Surface: Plain Oiled, Oxygen Black

Produce Type: Sand casting, Hot Forging

Packing Details: fumigation free wooden box

MOQ: 3000 Piece/Pieces

Supply ability: 500 Ton/Tons per Month

Delivery: within 20 working days

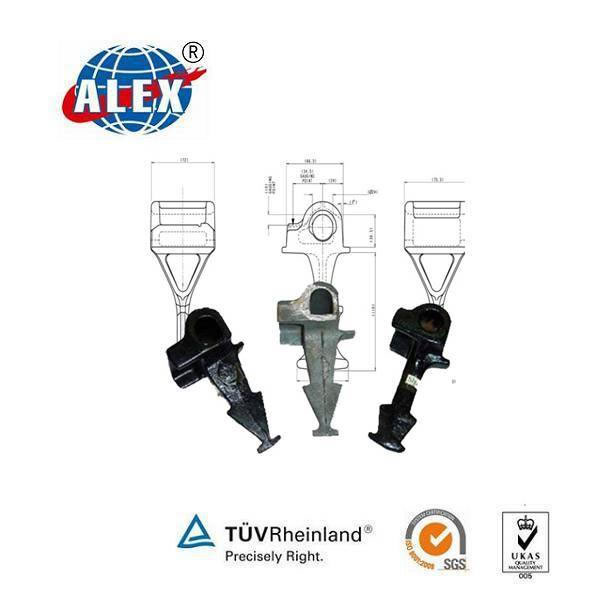

KSALEX Rail Shoulder

The KSALEX rail shoulder is pre-inserted in the concrete tie. There are M.C.I. shoulder manufactured from malleable iron and S.G.C.I. shoulder manufactured from malleable iron and S.G.C.I. shoulder from spheroid graphite iron. We offer two types of iron shoulders. One is Single Stem Iron Shoulder used in pre-stressed concrete ties and the other is Twin Stem Iron Shoulder used in Bi-Block or Twin Block concrete ties.

Iron KSALEX rail shoulder material technical parameter

Material

Tensile Strength(Mpa)

Yield Strength(Mpa)

Elongation(%)

QT400-15(GGG40)

400

250

15

QT450-10(GGG45)

450

310

10

QT500-7 (GGG50)

500

320

7

Material Chemical Composition%

Material

C

Si

Mn

P

S

QT400-15

3.6-.36

3.0-3.2

0.5

0.07

0.02

Qt450-10

3.4-3.9

3.7-3.0

0.5

0.07

0.03

QT500-7

3.4-3.8

2.5-2.9

0.6

0.08

0.025







We can produce rail shoulder for different dimentional sizes. We manufacture different types of rail shoulder and provide any type of mechanical properties and chemical compositions. Welcome to choose rail shoulder from Kunshan Alex Railway Fastening Co., Ltd.



Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.
We can provide products according to customers drawings and samples.Our main products are as following:


1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.


2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip


3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts


4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad


5. Fish plate / Joint bar / Rail joint/ Splice Bar


6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt


7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip


8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers


9. Plastic dowel / Guide plate/ Nylon insert


We are trying to supply the best products at the best price!
