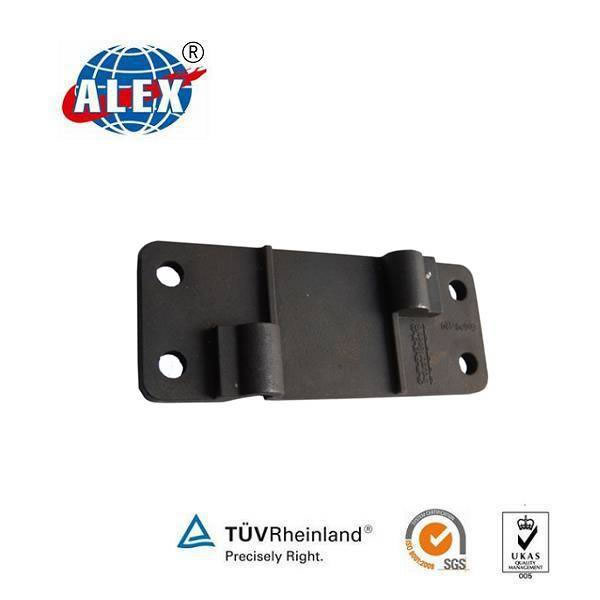

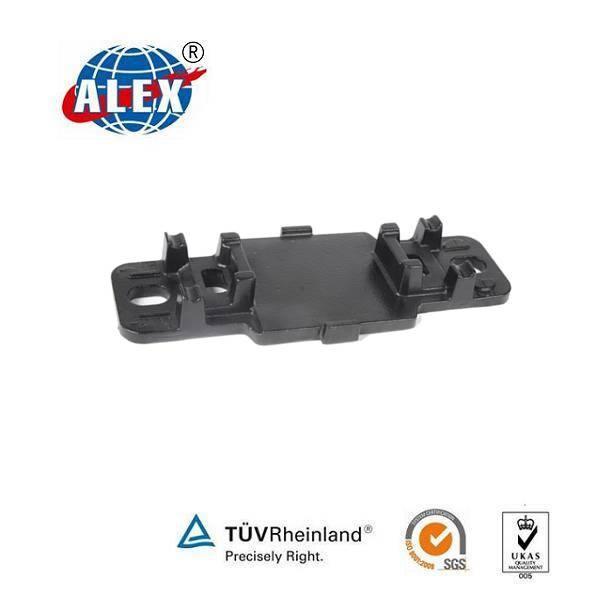

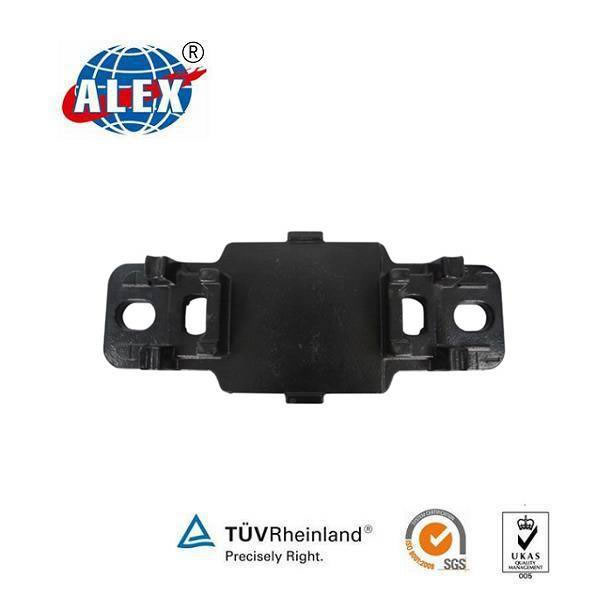

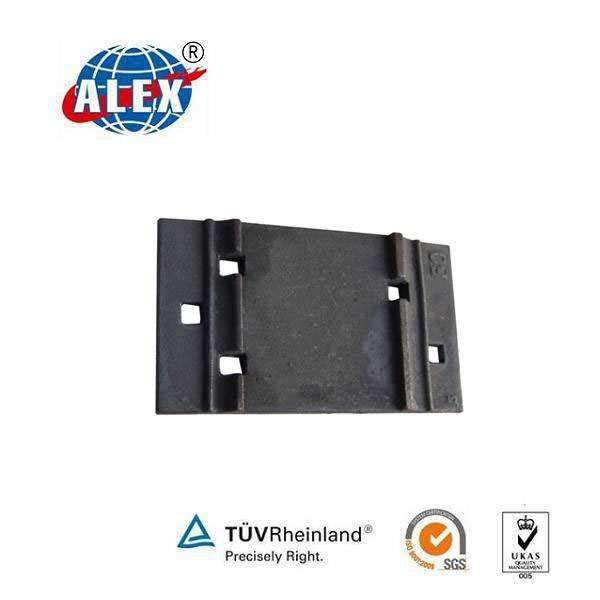

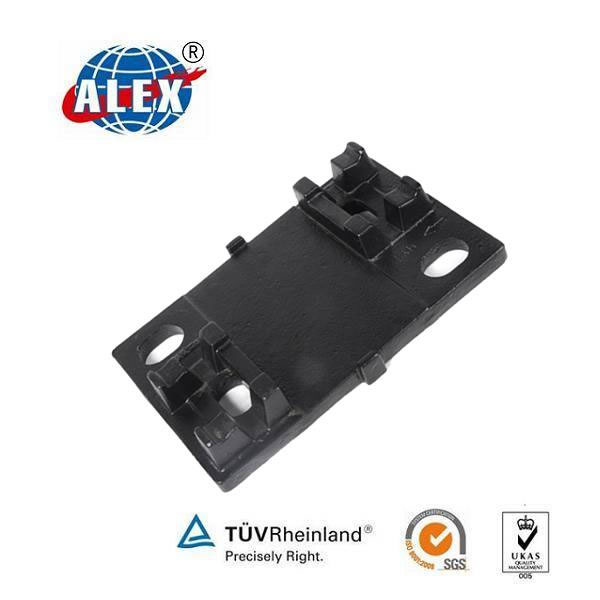

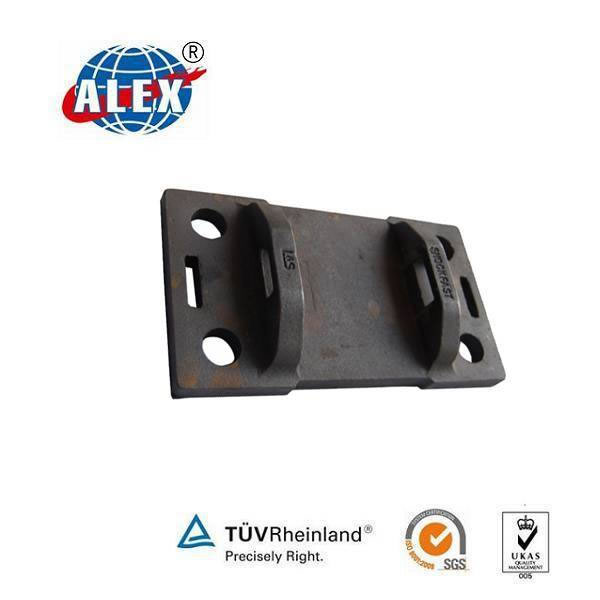

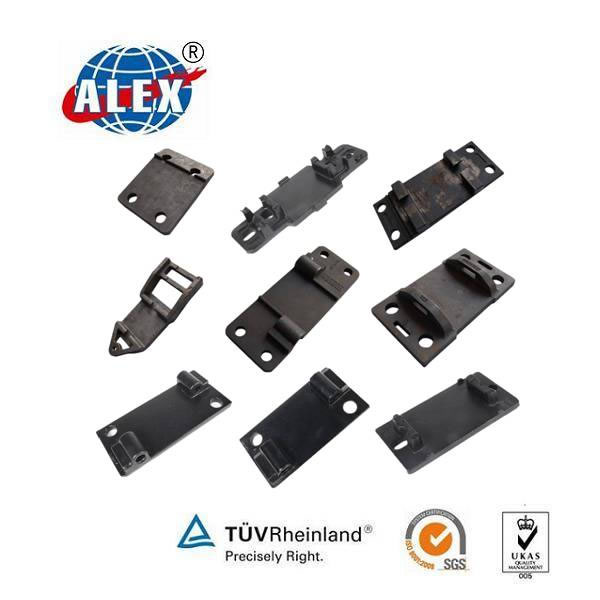

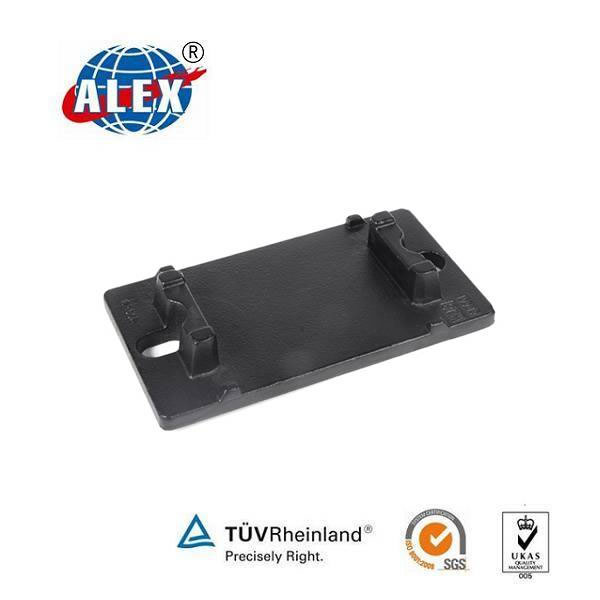

KSALEX rail tie base plate

Materials: QT400-15,QT450-10,QT500-7,QT600-3,QT700-2,ZG25,ZG35,ZG45 Model: Customized according to the drawing Surface: Plain Oiled, Oxygen Black Produce Type: Sand casting, Hot Forging Packing Details: fumigation free wooden box MOQ: 3000 Piece/Pieces Supply ability: ...
Materials: QT400-15,QT450-10,QT500-7,QT600-3,QT700-2,ZG25,ZG35,ZG45

Model: Customized according to the drawing

Surface: Plain Oiled, Oxygen Black

Produce TypeSand casting, Hot Forging

Packing Details: fumigation free wooden box

MOQ: 3000 Piece/Pieces

Supply ability: 500 Ton/Tons per Month

Delivery: within 20 working days


KSALEX rail tie base plate

BASE PLATE1 Base Plate (2)



Product Description





Technical Parameter



Type

Dimension

Holes

Incline

Rail

Weight(Kg)

Rph 1/160

345/285/127/160x15/13

Ø 26 (4x)

1:40

S 49/S 54

7,86

Rp 01/01/160

345/285/127/160x15/13

Ø 26 (4x)

1:40

S 49/S 54

7,70

Rph 1/210

345/285/127x210x15/13

Ø 26 (4x)

1:40

S 49/S 54

10,55

Rph 1/210

345/285/127x210x15/13

Ø 36,3 (2x)

1:40

S 49/S 54

10,55

Rph 1/210 FVZ

345/285/127x210x15/13

Ø 26 (4x)

1:40

S 49/S 54

10,69

Sph 1(a)

345/350/127x410x15/13

Ø 26 (8x)

1:40

UIC 60

20,60

Rph 6/160

370/310/152x160x15/13

Ø 26 (4x)

1:40

UIC 60

8,44

Rph 6/210

370/310/152x210x15/13

Ø 26 (4x)

1:40

UIC 60

11,32

SZ 60

370/350/152x420x15/13

Ø 26 (8x)

1:40

UIC 60

22,73

Rph 11 Ü

664/554x160

Ø 26 (4x)

1:40

S 54

15,37

Rph 13 Ü

690/570x160

Ø 26 (4x)

1:40

UIC 60

15,27

Rpo 5

345/285/127x160x15/13

Ø 26 (4x)

1:20

S 49/S 54

8



BasePlate ProductionBasePlate Production (1)BasePlate Production (2)BASEPLATE INSPECTION

Packaging & Shipping

 Baseplate packagingPackaging

Our Services

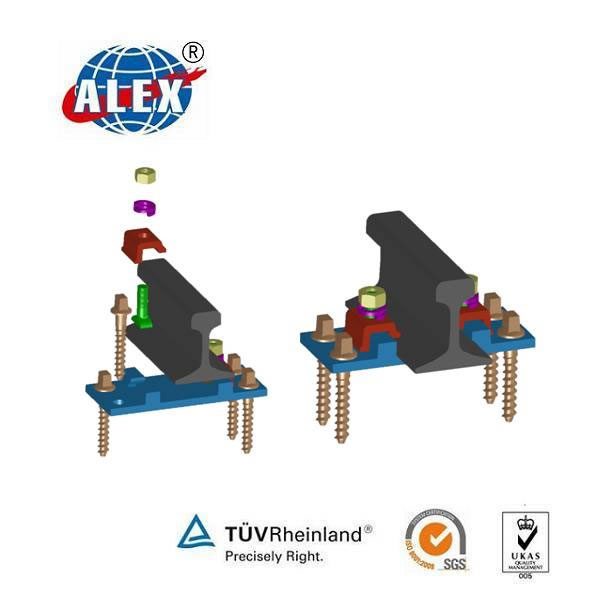

Baseplate-APPLICATION-KPOrailway fastening system (1)







We manufactures  Rail E Clip and Clamp,  High Tensile Bolt with Nut and Washer,  Rail Base(Tie) Plate,  Rail Fish Plate,  Rail Shoulder,  Rail Screw and Spike,  Fish Bolt with Nut and Washer,  Rail Dowel,  Rubber and EVA Pad,  Crane Rail and Light Rail,  Wooden Sleeper,  Auto Bolt and Other spare parts.



Company Information

ksalex company sksalex company (2)

Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.

We can provide products according to customers drawings and samples.Our main products are as following:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.

2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip

3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts

4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad

5. Fish plate / Joint bar / Rail joint/ Splice Bar

6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt

7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip

8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers

9. Plastic dowel / Guide plate/ Nylon insert

We are trying to supply the best products at the best price!
