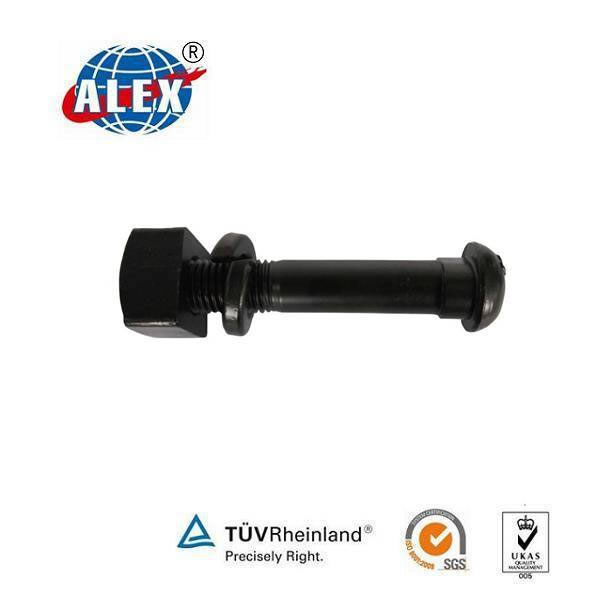

Oval Neck Fish Bolt
Grade: 4.6/4.8/5.6/5.8/8.8/10.9/12.9
Surface: Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating
Sample: Free
Standard: UIC864-2
Packing: Less than 25KG per double layer woven bag in fumigation free pallet
MOQ: 3000 Piece/Pieces
Supply ability: 3500 Ton/Tons per Month
Delivery: within 20 working days
Oval Neck Fish Bolt
We produce Oval Neck Fish Bolt and clip bolt for concrete sleeper and crane rail. The diameter is 16mm to 24mm, its length varies from 125mm to 300mm and the grade is 4.8/5.8/8.8/10.9/12.9. We provide normal strength and high strength bolts. Various bolt head are as round or oval head bolt, square head bolt, hex head bolt, clamp bolt, inserted bolt and so on or according to clients' requirement. We specialize in producing rail fastening products and railway fish bolt.
Material: 45#, 40Cr, 42CrMo and 35CrMo
Grade: 4.8, 5.6, 8.8, 9.8, 10.9, 12.9
Surface: Plain, Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating
MOQ: 5000PCS
Packing: Double layer woven bags with wooden pallets or according to clients' requirement
Technical Parameter of Oval Neck Fish Bolt
|
Diameter |
Length |
Weight (Kg) |
|
1/2" |
1-3/4" |
0.097 |
|
1/2" |
2" |
0.10 |
|
1/2" |
2-1/4 |
0.112 |
|
5/8 |
2-1/2 |
0.183 |
|
3/4 |
3 |
0.328 |
|
3/4 |
3-1/2 |
0.339 |
|
3/4 |
4 |
0.356 |
|
7/8 |
4-1/2 |
0.559 |
|
7/8 |
5 |
0.593 |
|
1 |
5 |
0.8 |
|
1 |
5-1/2 |
0.839 |
|
1 |
6 |
0.879 |
|
1-1/16 |
6 |
0.995 |
|
1-1/8 |
6-1/2 |
1.186 |
|
Diameter |
Length |
Weight (Kg) |
|
7/8 |
4-1/2 |
0.563 |
|
7/8 |
5-1/2 |
0.651 |
|
1 |
5-1/4 |
0.889 |
|
1 |
5-3/4 |
0.895 |
|
C |
Mn |
P |
S |
|
0.55(max) |
0.25(min) |
0.04(max) |
0.04(max) |
|
Tensile Strength |
Yield Strength |
Elongation |
|
800Mpa |
640Mpa |
12% |
Fish bolt are used together with railway fish plate for steel rail connecting. They are made according to BS, ASTM, JIS DIN, and others. We especially good at manufacturing high strength and high tensile railway fish bolt. Such as grade 8.8 bolt, 10.9 bolt and 12.9 bolt.
Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.
We can provide products according to customers drawings and samples.Our main products are as following:
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
We are trying to supply the best products at the best price!
Thank you for visiting our website. Welcom to choose the Oval Neck Fish Bolt from Kunshan ALEX Railway Fastening Co., Ltd.
