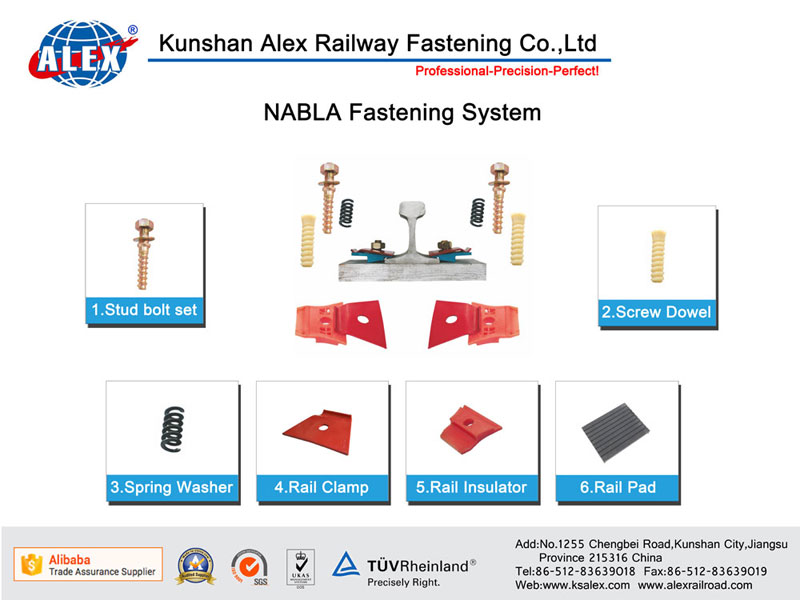

Nabla Type Railway Fastening System
Dimension: Different Size Available, Customized according to the drawing
Standard: DIN, NF, AREAMA, etc
MOQ: 5000 Piece/Pieces
Supply ability: 300 Ton/Tons per Month
Delivery: within 15 working days
Nabla Type Railway Fastening System

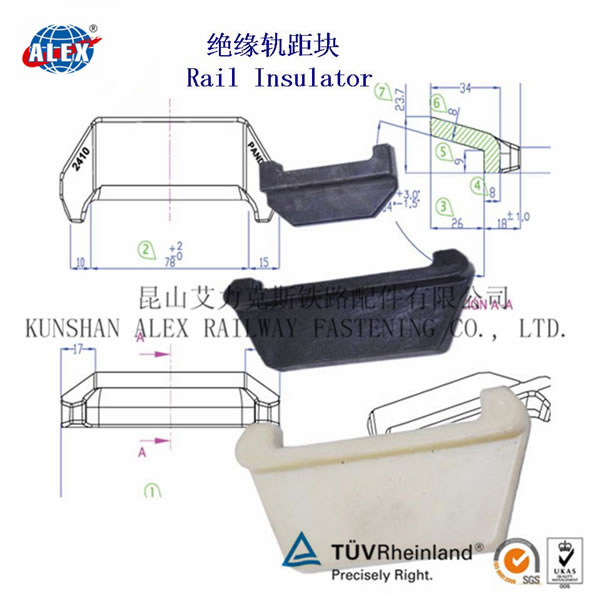

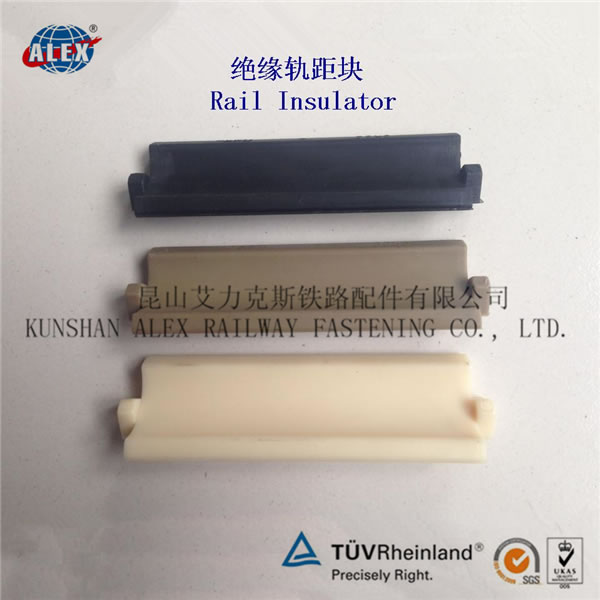

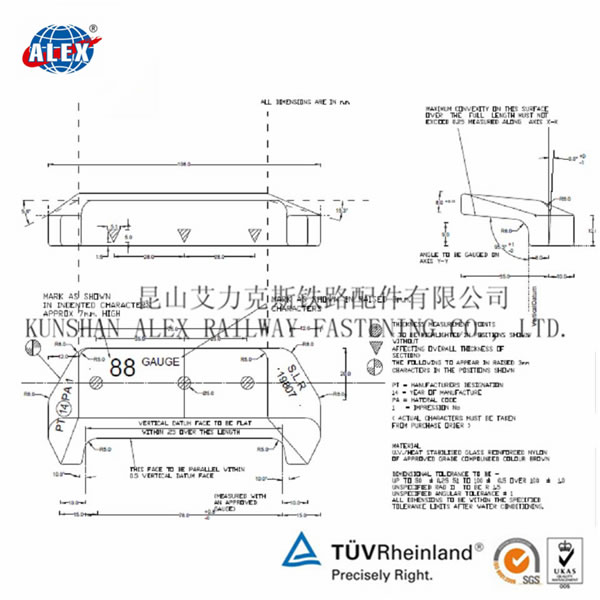

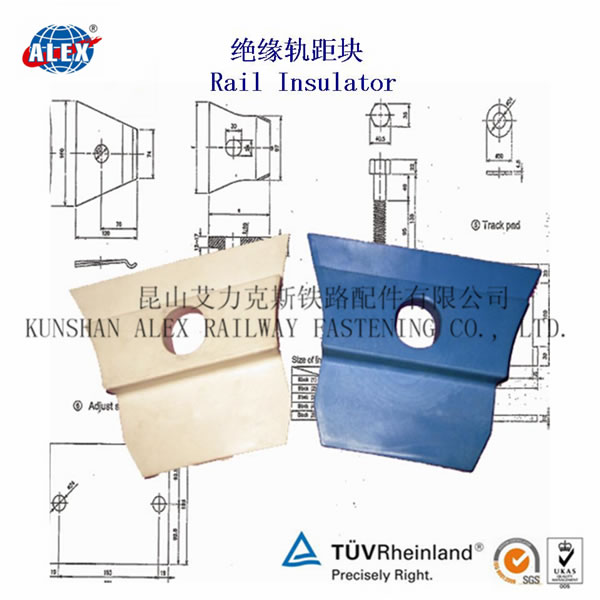

Railway Insulator is used for adjusting rail gauge and insulating rails from ties and clips. The material we use for rail insulator is PA66 with GF30%, with the color white, dark brown and black. And also, materials and colors can be selected according to customers' requirements, too.
PA66: Nylon 66.69%, Glass Fiber 30%, Other 1%
|
No. |
Technical Parameter |
Unit |
Technical Requirement |
Value |
|
1 |
Density |
g/cm |
1.3-1.45 |
1.45 |
|
2 |
Tensile Strength |
Mpa |
≥170 |
178 |
|
3 |
Elongation |
% |
≤4.4 |
4.0 |
|
4 |
Bending Strength |
Mpa |
≥250 |
290 |
|
5 |
Impact Strength (No gap) |
KJ/m2 |
≥80 |
85 |
|
6 |
Melting Point |
℃ |
250℃ - 270 |
270 |
|
7 |
Insulation Resistance |
Ω |
≥1×108 |
5×108 |
|
8 |
Glass Fiber Content |
% |
30-35 |
35 |
|
9 |
Hardness |
HRR |
≥110 |
118 |
|
10 |
Drainage |
% |
≥0.5% |
≥0.5% |
Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.
We can provide products according to customers drawings and samples.Our main products are as following:
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
We are trying to supply the best products at the best price!
Thank you for visiting our website. Welcom to choose the Nabla Type Railway Fastening System from Kunshan ALEX Railway Fastening Co., Ltd.
