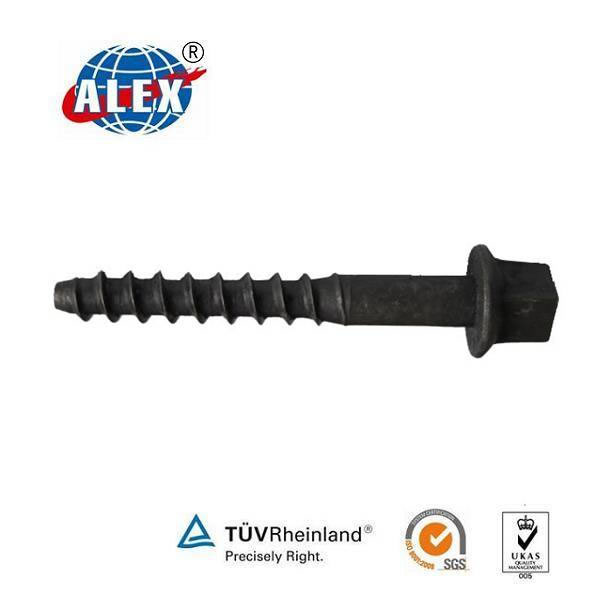

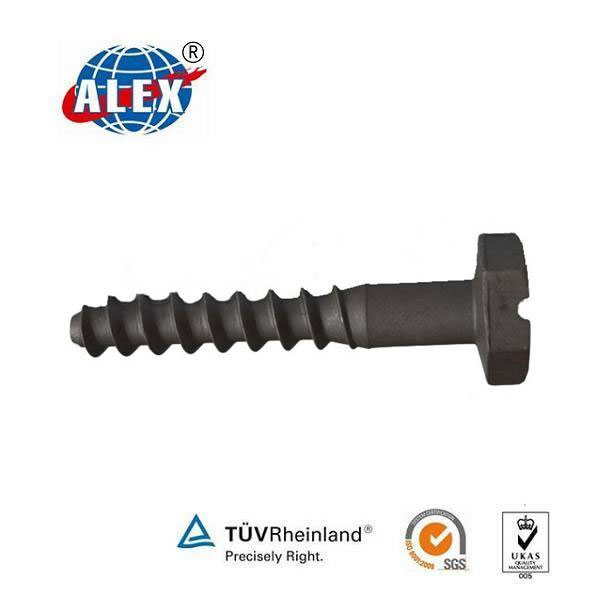

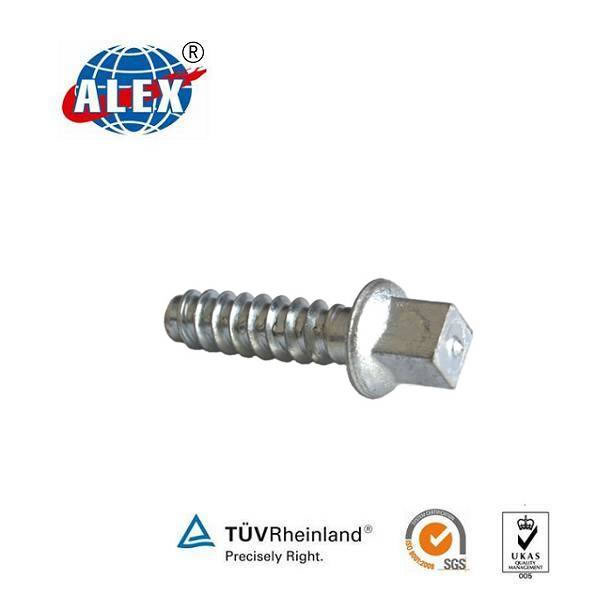

Screw Spike

Materials: Steel Q235,35#,45#; Alloy Steel 40Cr,42CrMo,35CrMo Grade: 3.6/4.6/4.8/5.6/5.8/6.8/8.8/10.9/12.9 Surface: Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating Material Refer to: DIN 17221,BS 970, GB/T 4357, GB/T 4358 Packing: ...

Materials: Steel Q235,35#,45#; Alloy Steel 40Cr,42CrMo,35CrMo

Grade: 3.6/4.6/4.8/5.6/5.8/6.8/8.8/10.9/12.9

Surface: Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating

Material Refer to: DIN 17221,BS 970, GB/T 4357, GB/T 4358

Packing: Less than 25KG per double layer woven bag in fumigation free pallet

MOQ: 3000 Piece/Pieces

Supply ability: 5000 Ton/Tons per Month

Delivery: within 20 working days

Screw Spike

Name

Screw Spike

Type

Ss5.-150

V20-135

Ss8-140

V23-115

Ss8-150

V23-135

Ss8-160

V23-155

Ss23-160

V23-215

Ss25.-165

V26-115

Ss35.-161



 Or the type by customers’ drawings

Grade

4.6

5.6

8.8

10.9

Material

Q235

35#

45#

40Cr

Mechanical properties

Tensile strength: ≥400Mpa

Tensile strength:≥500Mpa

Tensile strength:≥800Mpa

Tensile strength:≥1000Mpa

Yield strength:≥240Mpa

Yield strength:≥300Mpa

Yield strength:≥640Mpa

Yield strength:≥900Mpa

Elongation:≥22%

Elongation:≥20%

Elongation:≥12%

Elongation:≥9%

Cold bending: 90 degree without crack

Cold bending: 90 degree without crack

Cold bending: 90 degree without crack

Cold bending: 90 degree without crack

Surface

plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing

Standard refers

ISO898-1, UIC864-1, and NF F500-50


railway fastening system (1)







We manufactures Screw Spike, Clip and Clamp,  High Tensile Bolt with Nut and Washer,  Rail Base(Tie) Plate,  Rail Fish Plate,  Rail Shoulder,  Rail Screw and Spike,  Fish Bolt with Nut and Washer,  Rail Dowel,  Rubber and EVA Pad,  Crane Rail and Light Rail,  Wooden Sleeper,  Auto Bolt and Other spare parts.



Company Information

ksalex company sksalex company (1)

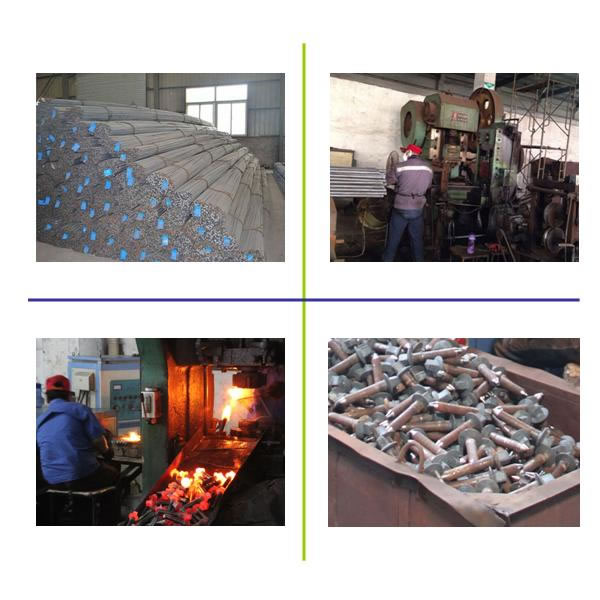

Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.

We can provide products according to customers drawings and samples.Our main products are as following:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.

2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip

3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts

4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad

5. Fish plate / Joint bar / Rail joint/ Splice Bar

6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt

7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip

8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers

9. Plastic dowel / Guide plate/ Nylon insert

We are trying to supply the best products at the best price!
